Dual-output AC charging for commercial sites

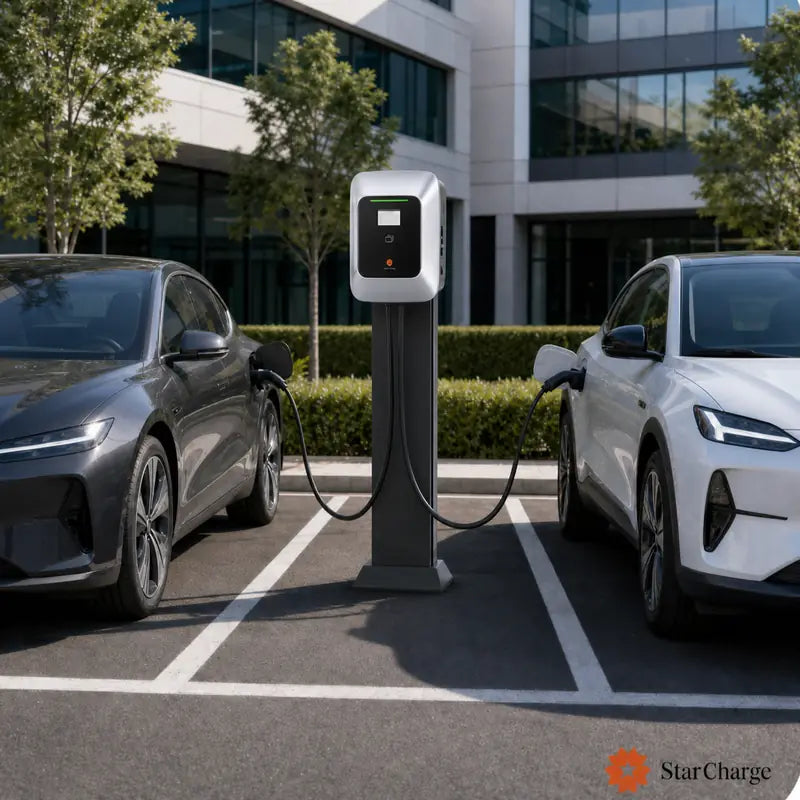

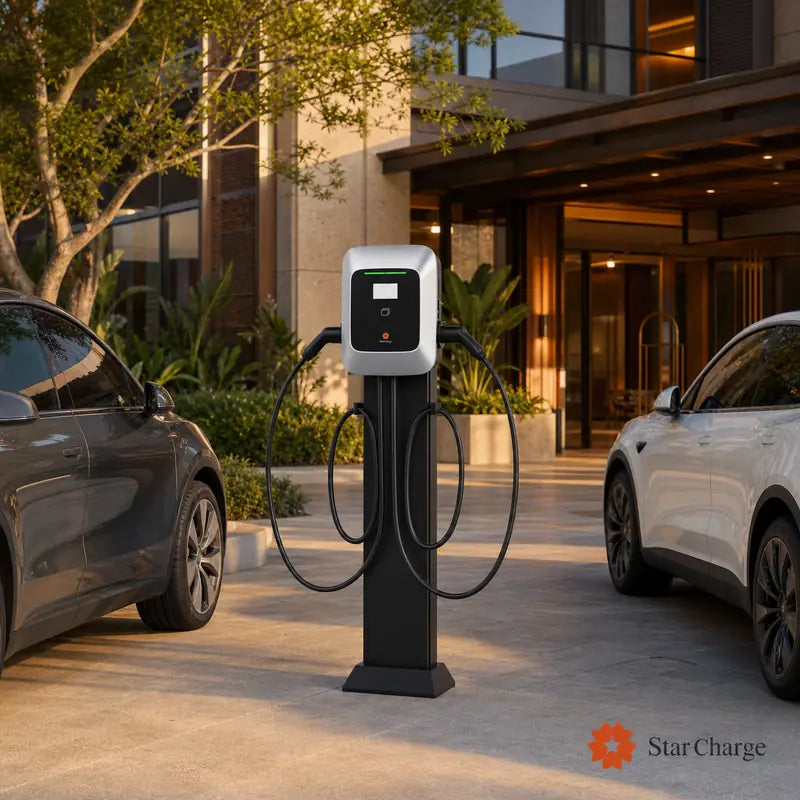

Saturn is presented as one dual-output commercial AC charging family for workplace, parking and destination-charging projects.
Europe / EU-IEC Type 2 configuration
- Up to 2 × 22kW and 2 × 32A, with 44kW total output
- Configuration 01: two IEC 62196-2 Type 2 tethered connectors, Case C, with 5m cables
- Configuration 02: two Type 2 sockets, Case B
- 4G, Wi-Fi and Ethernet connectivity with OCPP 1.6J

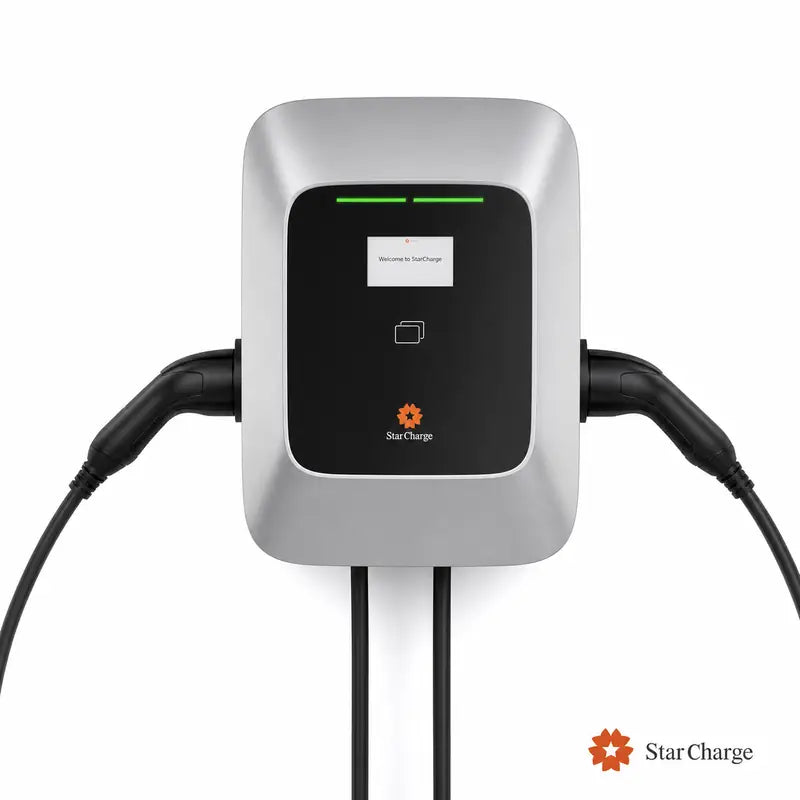

- 4.3-inch LCD, IP55 and IK10
- Operating temperature from -30°C to 50°C
Additional standards configurations
US-standard and China-standard Saturn configurations remain within the same Saturn family for project review. Their exact power, connector, communication and certification details are confirmed for the requested configuration before quotation and are not inherited from the EU-IEC model.
Plan a Saturn deployment
Share the required charging-point quantity, connector or socket preference, site electrical conditions, target standard, network requirements and installation schedule. NX.SOLAR will review the appropriate Saturn configuration for your project.
Technical documents
Request the matched document pack
Tell us the required power, interface, target standard and destination. We will match the available datasheet and configuration documents to your project.
